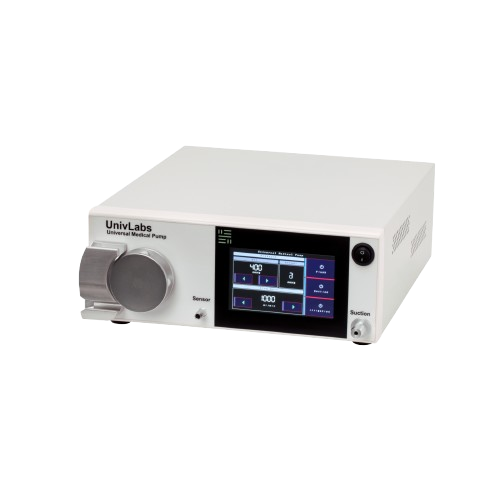

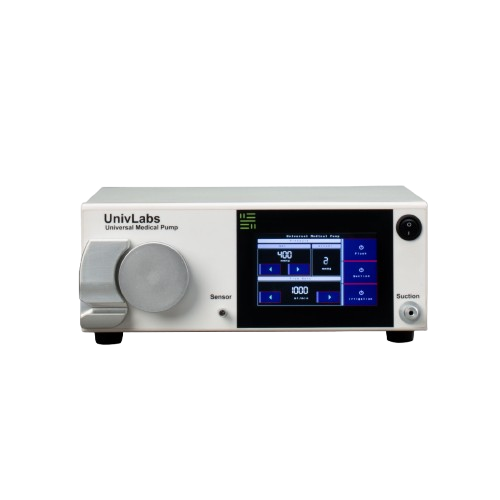

Universal Medical Pump – UMP-1000

Unprecedented Safety & Reliability for Diverse Surgical Applications

Interdisciplinary Fluid Management for Surgical Precision

The UMP-1000 is an interdisciplinary pump for the administration or suction of fluids during surgical and diagnostic procedures. Known variously as an irrigation & suction pump, laparoscopy pump, hysteroscopy pump, saline pump, and more, it delivers superior performance, safety, and reliability across multiple specialties.

Key features

Best-in-class Piezo pressure sensor for precise intra-cavity monitoring.

Dedicated priming control for rapid and reliable setup.

Self-test diagnostics with adjustable pump values.

Integrated fluid flow management: 0.01 – 1.0 L/min.

Fast & accurate pressure regulation: 50 – 400 mmHg.

Large numerical & symbolic display: 3.2″ touchscreen for real-time monitoring.

DEHP-free disposable tubings for enhanced patient safety.

Interdisciplinary applications: Hysteroscopy, TURP, laparoscopy irrigation & suction.

Play

Technical specifications

Flow Range: 0.01 – 1.0 L/min
Pressure Range: 50 – 400 mmHg
Suction Vacuum: 0.65 bar
Power Supply: 100 – 240 V AC, 50/60 Hz, 150 VA
Display: 3.2″ capacitive touchscreen
Dimensions: 310 × 120 × 330 mm

Weight: ~7 kg
Operating Temperature: 5 – 40 °C
Storage Temperature: –20 – 60 °C
Relative Humidity: 30 – 95% (operating); 10 – 75% (storage)
Barometric Pressure: 700 – 1060 hPa
Certifications & Compliance: ISO 9001, ISO 13485, IEC 60601-1, medical EMC standards, Class 1 equipment, IPX0
